Suits 50mm wide Steel or Hardwood Joists (Australia/NZ) PLEASE NOTE: Bolts,Nuts,Washers & Masonry bolts are NOT INCLUDED and must be purchased separately from your Merchant/Hardware Store.
Freight costs apply for all orders. For further information please go to Shipping Information tab on the Online Store home page.
For New Zealand enquiries please contact One Stop Decking Shop
P 64 (0) 384 8365 E [email protected]
--------------------------------------------------------------------------------------------------------------------------------------------
Adjustable Joist Support (AJH50G) Information
As many houses these days are built on concrete slabs, there is often a shortage of height available to build a regular decking substructure of stumps, bearers and joists etc. Indeed, many houses have a slab for a patio area set down only approx 100mm below the height of the main housing slab. Fixing timber battens directly to concrete slabs is regarded as a poor building practice due the moisture uptake into the batten which will rot out the batten way before its normal lifespan. This scenario has made it very difficult for people to enjoy the relaxed lifestyle of having a timber deck at their doorstep.
We have now have released the Adjustable Joist Support for 50mm wide Steel or Hardwood joists which allows you to adjust the "top of joist height" from 118mm (using 60mm length bolts + 100 x 50mm joists) to 230mm (using 120mm length bolts + 150mm x 50mm joists).
Note: Hardwood joists should be pre-drilled then nailed or screwed to the joist support.
Please note: - the Adjustable Joist Supports come in standard boxes of 24 units - each unit being a Joist Support + a Base Plate. Bolts, nuts, washers and dynabolts are standard sizes and must be purchased separately from your hardware store

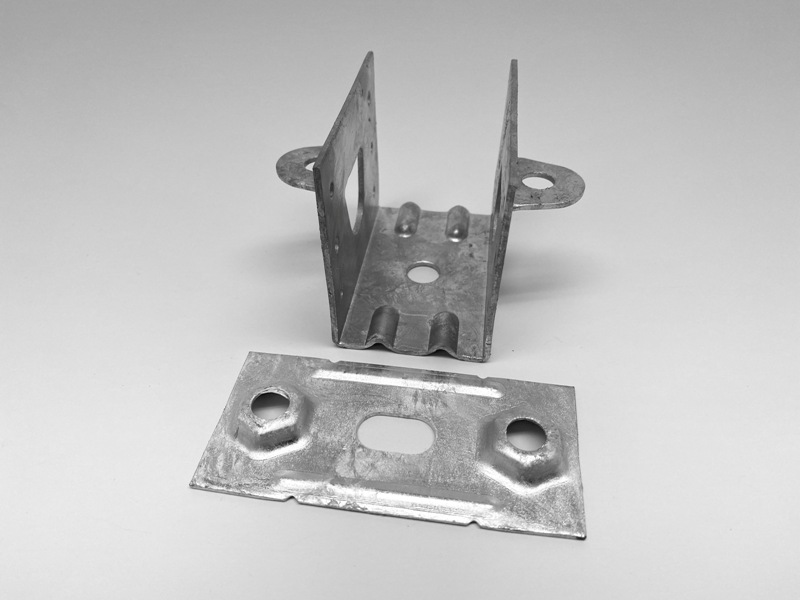

360° view Adjustable Joist Support Assembled
